- ASROCK
- Nou
Preț
€128 58 / 251 48 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://asrock.com/MB/AMD/B550%20Rock%20WiFi/index.asp?utm_source=chatgpt.com#Overview
Model

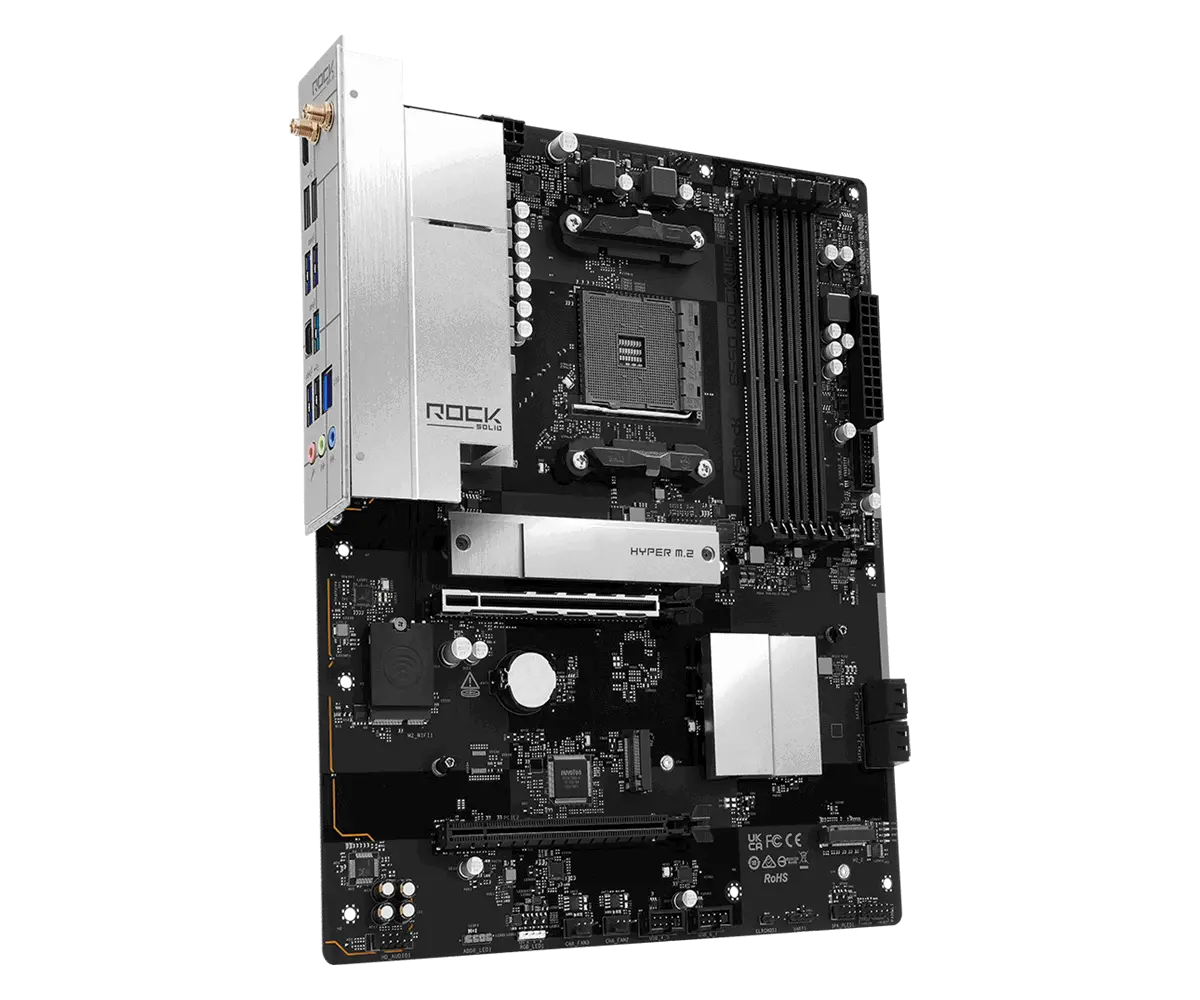

B550 Rock WiFi
Socket
AMD AM4
Graphics
Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* (Actual support may vary by CPU)
- 1 x HDMI 2.1, supports HDR, HDCP 2.3, 4K Ultra HD (UHD) playback and max. resolution up to 4K 60Hz
CPU's supported
Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Chipset
AMD B550
Expansion slots
AMD Ryzen series CPUs (Vermeer and Matisse)
- 2 x PCIe x16 Slots (PCIE1: Gen4x16 mode
PCIE2: Gen3 x2 mode)
AMD Ryzen series APUs (Cezanne and Renoir)
- 2 x PCIe x16 Slots (PCIE1: Gen3x16 mode
PCIE2: Gen3 x2 mode)
AMD Ryzen series APUs (Picasso)
- 2 x PCIe x16 Slots (PCIE1: Gen3x8 mode
PCIE2: Gen3 x2 mode)
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir and Picasso)
Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
- 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen3x2 (16 Gb/s) mode
- 4 x SATA3 6.0 Gb/s Connectors
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Memory type
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory
- Max. capacity of system memory: 128GB
- Supports Extreme Memory Profile (XMP) memory modules
- 15μ Gold Contact in DIMM Slots

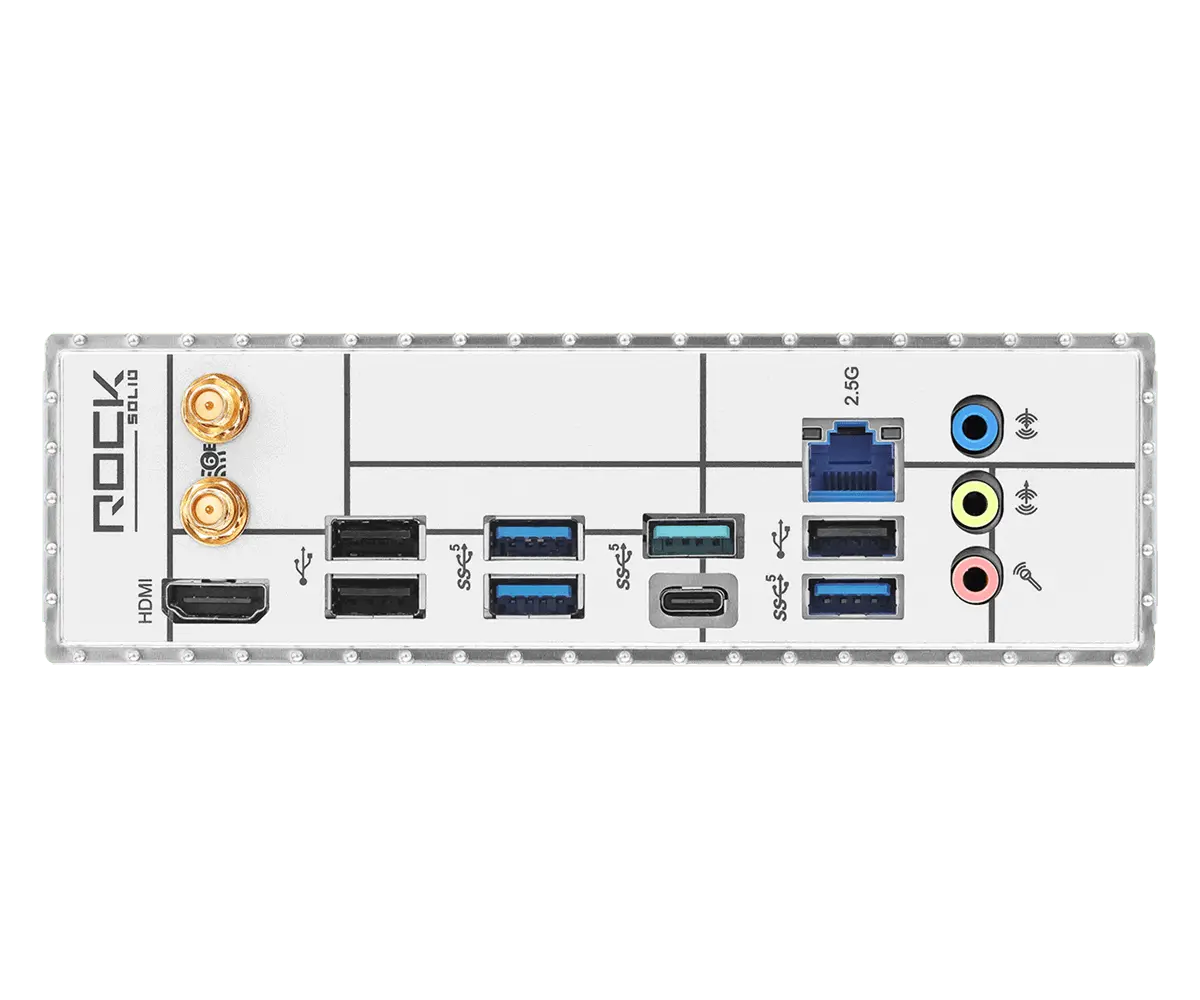

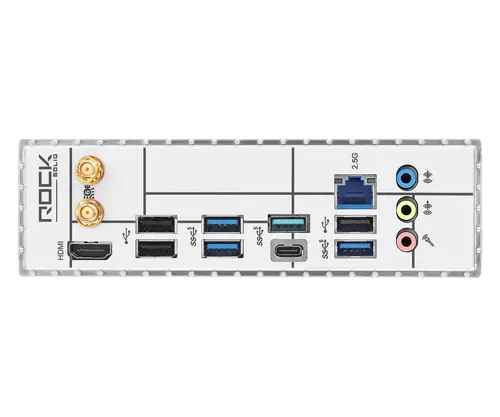

Rear panel I/O
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x USB 3.2 Gen1 Type-C Port
- 4 x USB 3.2 Gen1 Type-A Ports
- 3 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
USB
CPU:
- 1 x USB 3.2 Gen1 Type-C (Rear)
- 3 x USB 3.2 Gen1 Type-A (3 Rear (USB32_12 and USB32_3))
Chipset:
- 1 x USB 3.2 Gen1 Type-C (Front)
- 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_4), 2 Front)
- 7 x USB 2.0 (3 Rear, 4 Front)
Connectors
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header
- 3 x Addressable LED Headers
- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
- 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Support 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Lan
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
Wireless
- 802.11axe Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax/axe
- Supports Dual-Band 2x2 with extended 6GHz band support*
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.3
- Supports MU-MIMO
Bluetooth
Supports Bluetooth 5.3
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
ATX
2oz Copper PCB
OS
Microsoft Windows® 10 64-bit / 11 64-bit
Other
Rock-Solid Durability
- 8+2 Power Phase
- Pre-Installed I/O Shield
Ultrafast Connectivity
- 2.5G LAN, 802.11axe Wi-Fi 6E Module
EZ Troubleshooter
- ASRock Post Status Checker
Dimensions
30.5 cm x 24.4 cm
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Socket | AMD AM4 |
| Vendor_url | https://asrock.com/MB/AMD/B550%20Rock%20WiFi/index.asp?utm_source=chatgpt.com#Overview |
| Chipset | AMD B550 |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| CPU's supported | Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors |
| Memory type | - Dual Channel DDR4 Memory Technology |
| Memory type | - Supports Extreme Memory Profile (XMP) memory modules |
| Memory type | - 15μ Gold Contact in DIMM Slots |
| Memory type | - 4 x DDR4 DIMM Slots |
| Memory type | - AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memo |
| Memory type | - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memo |
| Memory type | - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 213 |
| Memory type | - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 |
| Memory type | - Max. capacity of system memory: 128GB |
| Memory type | - AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory |
| Form Factor | ATX |
| Form Factor | 2oz Copper PCB |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Rear panel I/O | - 1 x HDMI Port |
| Rear panel I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Rear panel I/O | - 2 x Antenna Ports |
| Rear panel I/O | - 1 x USB 3.2 Gen1 Type-C Port |
| Rear panel I/O | - 1 x RJ-45 LAN Port |
| Rear panel I/O | - 4 x USB 3.2 Gen1 Type-A Ports |
| Rear panel I/O | - 3 x USB 2.0 Ports |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| LAN | - Dragon RTL8125BG |
| LAN | - Supports Dragon 2.5G LAN Software |
| LAN | - Smart Auto Adjust Bandwidth Control |
| LAN | - Visual User Friendly UI |
| LAN | - Visual Network Usage Statistics |
| LAN | - Optimized Default Setting for Game, Browser, and Streaming Modes |
| LAN | - User Customized Priority Control |
| Model | B550 Rock WiFi |
| Expansion Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Expansion Slots | AMD Ryzen series CPUs (Vermeer and Matisse) |
| Expansion Slots | AMD Ryzen series APUs (Cezanne and Renoir) |
| Expansion Slots | AMD Ryzen series APUs (Picasso) |
| Expansion Slots | - 2 x PCIe x16 Slots (PCIE1: Gen4x16 mode |
| Expansion Slots | PCIE2: Gen3 x2 mode) |
| Expansion Slots | - 2 x PCIe x16 Slots (PCIE1: Gen3x16 mode |
| Expansion Slots | - 2 x PCIe x16 Slots (PCIE1: Gen3x8 mode |
| Dimensions | 30.5 cm x 24.4 cm |
| Wireless | - Supports MU-MIMO |
| Wireless | - 802.11axe Wi-Fi 6E Module |
| Wireless | - Supports IEEE 802.11a/b/g/n/ac/ax/axe |
| Wireless | - Supports Dual-Band 2x2 with extended 6GHz band support* |
| Wireless | - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology |
| Wireless | - Supports Bluetooth 5.3 |
| Graphics | Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* (Actual support may vary by CPU) |
| Graphics | - 1 x HDMI 2.1, supports HDR, HDCP 2.3, 4K Ultra HD (UHD) playback and max. resolution up to 4K 60Hz |
| Other | Rock-Solid Durability |
| Other | Ultrafast Connectivity |
| Other | EZ Troubleshooter |
| Other | - ASRock Post Status Checker |
| Other | - 8+2 Power Phase |
| Other | - Pre-Installed I/O Shield |
| Other | - 2.5G LAN, 802.11axe Wi-Fi 6E Module |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors |
| Storage | CPU: |
| Storage | Chipset: |
| Storage | - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir and Picasso) |
| Storage | - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes |
| Storage | - 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen3x2 (16 Gb/s) mode |
| Bluetooth | Supports Bluetooth 5.3 |
| Connectors | - 1 x Power LED and Speaker Header |
| Connectors | - 1 x 24 pin ATX Power Connector |
| Connectors | - 1 x Front Panel Audio Connector |
| Connectors | - 1 x SPI TPM Header |
| Connectors | - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) |
| Connectors | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Connectors | - 1 x Front Panel Type C USB 3.2 Gen1 Header |
| Connectors | - 1 x RGB LED Header |
| Connectors | - 3 x Addressable LED Headers |
| Connectors | - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) |
| Connectors | - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) |
| Connectors | - 1 x USB 3.2 Gen1 Header (Support 2 USB 3.2 Gen1 ports) |
| USB | CPU: |
| USB | Chipset: |
| USB | - 1 x USB 3.2 Gen1 Type-C (Rear) |
| USB | - 1 x USB 3.2 Gen1 Type-C (Front) |
| USB | - 7 x USB 2.0 (3 Rear, 4 Front) |
| USB | - 3 x USB 3.2 Gen1 Type-A (3 Rear (USB32_12 and USB32_3)) |
| USB | - 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_4), 2 Front) |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
